Pvc conical cup clear pvc box machine install instruction
Usage Equipment
The econimical design plastiic sheet ultrasonic cylindrical shaping clear pvc box machine is our basic machine. The series model of this machine is JC-180S.
And we have single model that name according of specification function, like:
- JC-180S-G(G-glue sealing) / JC-180S-U(U- ultraosnic welding).
- JC-180S-GC(G-glue, C-conical) / JC-180S-UC(U-ultrasonic, C-conical)
- JC-180S-UC/JC-180S-GC is ok for straight cylinders and conical cylinders production.

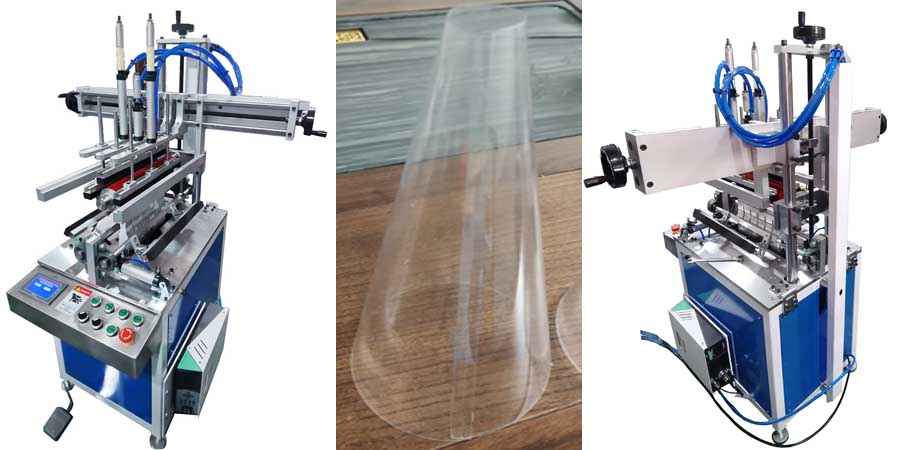

Machine model JC-180S-GC is designed and manufactured by our company is a semi-automatic ultrasonic welding and shaping equipment for cylinders.
The working process of this series machine is:
- manually feeding the material,
- bending and shaping the sheet,
- ultrasonic welding to bond the edges,
- and manually pulling out the cylinder, (turning PVC and PET plastic coils into cylinders of the set length.)
It is usually used for manufacturing packaging pipeline cylinders, packaging containers, etc. for food and daily necessities. This series clear pvc box machine is specialized manufacture for various designed circular PVC/PET plastic packaging boxes.
Features of the Equipment
- The cylindrical shaping clear pvc box machine adopts a mechanical control system. This model of machine offers high cost-effectiveness of the equipment. The mold replacement is convenient and quick.
- By manually controlling the forming parameters and pressure, the dimensional accuracy and shape consistency of the formed products are ensured.
- Wide application range: The cylindrical shaping machine is suitable for the ultrasonic welding and forming requirements of PVC/PET sheets of different sizes.
- Easy operation: Operators only need to carry out simple settings and monitoring to complete the forming process, and the operation is simple and convenient.
- It is suitable for novices or small-batch production, and can meet the needs of the initial stage of a new industrial factory or test production.
- With ultrasonic welding technology, there is no need to purchase adhesive glue for PVC/PET plastic sheets, reducing production costs.
Equipment Parameters
Customers can weld cylindrical or conical cylinders of different lengths or diameters according to specific production requirements. After making the corresponding settings, the working speed will be adjusted accordingly. The following is the list of clear pvc box machine parameters.
- Model： JC-180S-UC
work technology： PVC/PET ultrasonic welding
input voltage： single phase 220V AC 50/60Hz
tube diameter： 45mm~200mm (for standard model)
tube height： 10~390mm
material thickness： 0.12~0.5mm
working power： 3000W
air press range： 4~6pa 350L/min
production range： 500~900pcs/hour( 100mm/ 100mm length)
Raw material width： 635mm /max width
suitable material： PET/PVC /in piece sheet
Precise： < + 0.1mm
Optional function： straight tube or conical jar for choose
mold change time： 15~20minute
gross weight： 300kg
Measurement： 100*1250*1650mm
